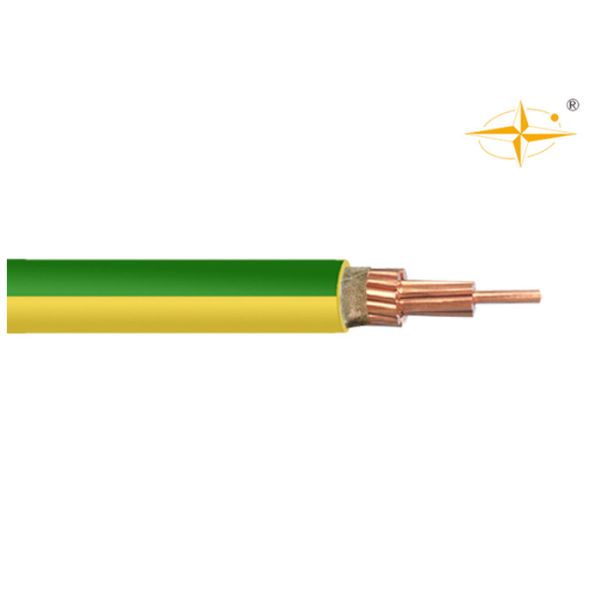

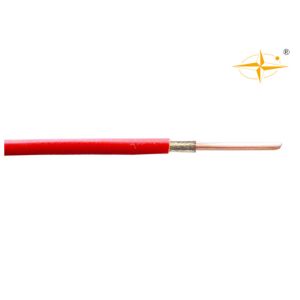

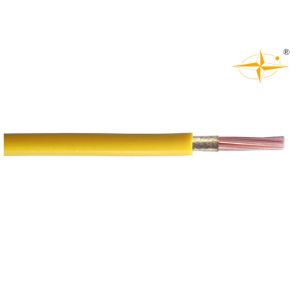

    LSZH FRC Low Smoke Zero Halogen Cable

    Ask Lasest Price
    Brand Name : SHANCABLE
    Model Number : WDZAN-BYJ
    Certification : CE/KEMA/CCC/TUV
    Price : 0.1USD to 5.0USD
    Payment Terms : L/C, T/T
    Supply Ability : 200km/days
    Delivery Time : Within one week
    • Product Details
    • Company Profile

    LSZH FRC Low Smoke Zero Halogen Cable

    1.5mm2 2.5mm2,4mm2 Electrical Wire LSZH FRC Cable 100m per Roll Different Color

    Insulation

    Single-core non-sheathed cables with flexible conductor for internal wiring for a conductor of 90℃
    Code designation: 60227 IEC 08 (International)

    Standard: BS6004 / IEC227

    1)Standard

    GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC60227

    2) Rated Voltages :


    300/500V 450/750V (600/1000V also available)

    3) Application


    pvc insulated electric wire/buidling wire is suitable for use in power installations, fixed wiring or

    flexible connections for electrical appliance like lighting, electronic equipment, instrument and communication equipment with rated
    voltage 450/750V or less.

    4)Construction


    Conductor : cu
    Insulation : PVC

    Specifications


    Nominal area of conductorNo./Dia. Of ConductorMax.O.DApprox.WeightMax. D.C Resistance of Conductor (20 ℃)Ω /km
    mm2mmmm2kg/kmΩ /km
    0.51/0.802.38.536.0
    0.75(A)1/0.972.511.124.5
    0.75(B)7/0.372.612.024.5
    1.0(A)1/1.132.713.918.1
    1.0(B)7/0.432.815.018.1

    Nominal area of conductorNo./Dia. Of ConductorMax.O.DApprox.WeightMax. D.C Resistance of Conductor (20 ℃)Ω /km
    mm2mmmm2kg/kmΩ /km
    CopperAluminiumAluminiumCopper
    1.5(A)1/1.383.220.312.1
    1.5(B)7/0.523.321.612.1
    2.5(A)1/1.783.931.61711.87.41
    2.5(B)7/0.684.034.87.41
    4(A)1/2.554.447.1227.394.61
    4(B)7/0.854.650.3


    Temperature range :


    during installationi : +5 °C up to +90 °C
    fixed installed : -30 °C up to +70 °C
    at short circuit of max. 5 s : up to 150 °C
    ambient temperature at storage : up to 40 °C

    Nominal voltage :


    Uο/U = 300/500 V
    Test voltage : 2000 V

    Minimal inner bending radius : 4D for D < 8 mm
    5D for 8 - 12 mm
    6D for D > 12 mm

    FAQ

    1. Why choose us ?

    A: we are an OEM factory. Good price is one of our important competency

    B: advanced technology is the guarantee of high quality goods

    C: we have professinal technical engineer to develop and design new products

    D: Small quantity can be accepted

    2. How can i get a sample ?

    After all product details and price are confirmed, if we have the same one in stock, we will send

    free sample to you within two days. If not, you need to pay sample fees to customize it. Generally,

    the

    delivery is 7-10 days.

    3. Do you have any approvals of your products ?

    Yes, we have CE ROHS PCCC KEMA etc.certificates


    Packing and shipping
