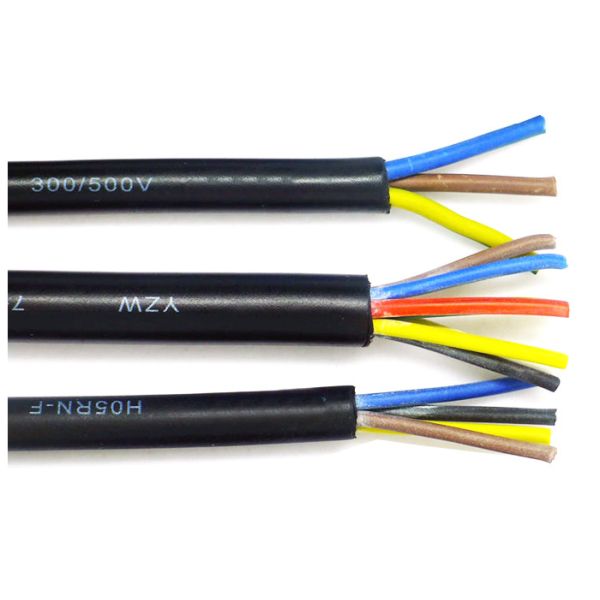

    H05RN-F Rubber Coated Cable Black Sheath Color For Oily Acidic Alkaline Environment

    Ask Lasest Price
    Brand Name : SHAN CABLE
    Model Number : H05RN-F
    Certification : CE/KEMA/CCC/TUV
    Price : USD 0.4 To 10.5 per Meter
    Supply Ability : 8KM per Day
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

    H05RN-F Rubber Coated Cable Black Sheath Color For Oily Acidic Alkaline Environment

    H05RN-F Rubber Coated Cable Black Sheath Color For Oily Acidic Alkaline Environment

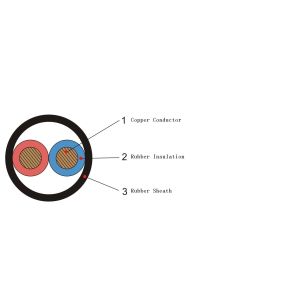

    Construction:


    Conductor: Flexible Class 5 Copper Conductor

    Insualtion: Rubber Sheath

    Sheath: Rubber Sheath


    Application :


    This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment


    Insulation Color:


    Single-Core: Black,
    2-Core: Brown & Black,
    3-Core: Brown, Blue & Green/Yellow
    4-Core: Brown, Blue, Black & Green/Yellow
    5-Core: Brown, Blue, Black, Grey & Green/Yellow


    Sheath Color:


    Black

    Rubber sheathed flexible cable wire:


    Working temperature


    H07RN-F model rated voltage U0/U IS 450/750V

    H05RN-F model rated voltage U0/U IS 300/500V

    H05RR-F model rated voltage U0/U IS 300/500V

    Long time allow working temperature of wire core cant be higher than 60


    Rubber copper wire Working Conditions


    1. Rated voltage :300/500(h05rn-f type),450/750V(h07rn-f type)

    2. The long-term working temperature of conductor should be no longer than 65°C

    3. W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.

    4. ZR type cables have fire-retardant character.


    Characteristics


    1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.

    2. Maximum permitted operating temperature of conductor is 60°C.

    3. Permitted lowest working temperature is -35°C.

    4. Cables can be used at places contaminated by mineral oil and fuel oil.

    Cross-Sectional
    Area mm2
    Number diameter of coreOverall DiameterMax.D.C resistance
    of at 20℃
    MΩ/km
    Approx Weight
    (kg/km)
    minmaxCopperTinned-CopperYZYZW
    2x0.7524/0.25.77.42626.781.789.6
    2x132/0.26.1819.720123138
    2x1.516/0.257.69.813.313.7185196
    2x2.528/0.25911.67.988.21234252
    2x456/0.310.613.74.955.09255276
    2x684/0.311.815.13.33.39356371
    3x0.7524/0.26.28.12626.797.4105
    3x132/0.26.58.519.720112126
    3x1.516/0.25810.413.313.7156174
    3x2.528/0.259.612.47.988.212042019
    3x456/0.311.314.54.955.09285302
    3x684/0.312.616.13.33.39398423
    4x0.7524/0.26.88.82626.7117125
    4x132/0.27.19.319.720134148
    4x1.516/0.25911.613.313.7186206
    4x2.528/0.2510.713.87.988.21255270
    4x456/0.312.713.84.955.09356374
    4x684/0.31417.93.33.39465482
